Product Features
- Gauge & differential pressure
- Measuring ranges ±13.79 kPa / ±2 psi / ±55.4 H2O
- 11 selectable scales & units: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin2, FtH2O, cmH2O, kgcm2
- High accuracy ±0.3% in full scale
- Large LCD with backlight
- Zero adjust & offset functions
- MAX/MIN/AVG values with relative time stamps
- Data Hold
- Error codes for out of range indication
- Low battery indication
- Auto power off (can be disabled)
- 2 pairs of tubing included
Specifications
- Display: Dual LCD
- Accuracy: ±0.3% FSO (25°C)
- Repeatability: ±0.2% (Max ±0.5% FSO)
- Linearity/Hysteresis: ±0.29% FSO
- Maximum Pressure: 10psi
- Response Time: 0.5 second typical
- Low Battery Indicator: Yes
- Over Range Indicator: Err.1
- Under Range Indicator: Err.2
- Operating Conditions: 0 to 55°C (32 to 122°F)
- Storage Conditions: -1 to 60°C (14 to 140°F)
- Power Supply: 1 x 9V Battery (not included)

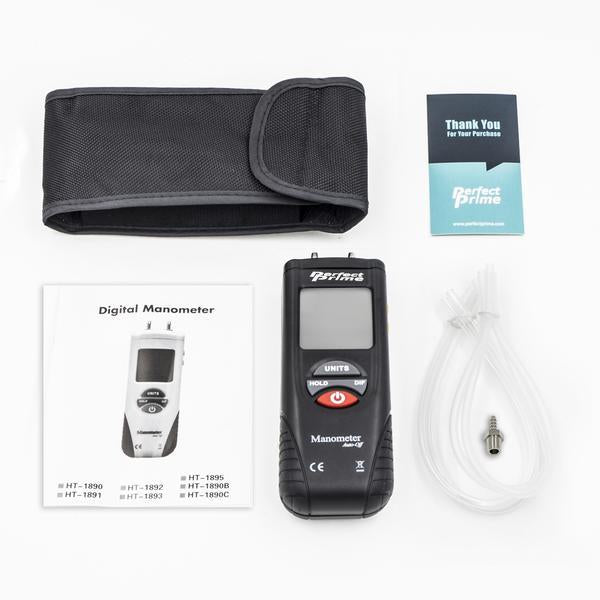

- 1 x Manometer

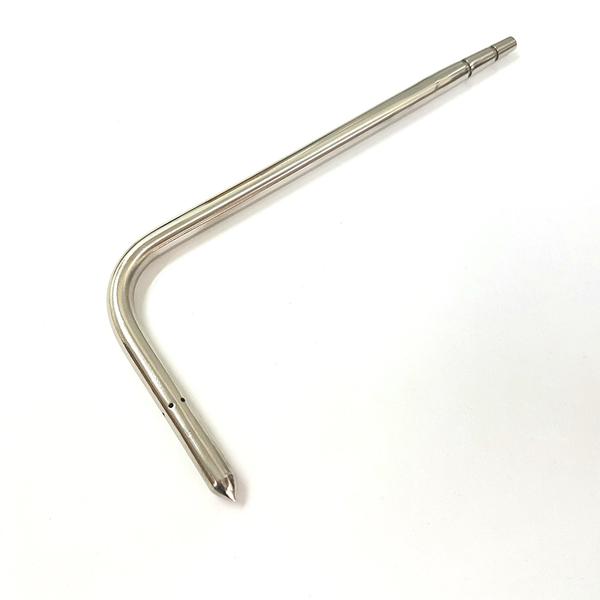

- 1 x Static Tube
- 2 pairs of tubing
- 1 x 3/8" NPT x 1/8" Barb Access Fitting
- 1 x Soft pouch
- 1 x Instruction Manual
- Standard Factory Package
